L3.0-PIM
Rated voltage: 650V
Rated current: 50A
Circuit structure: PJ=3 Phase Rectifier + Brake + 3 Phase Open Emitter Output
Chip series: X=Trench FS IGBT, Low Loss
Product number:GD50PJX65L3S

C8.1-Half Bridge
Rated voltage: 650V
Rated current: 400A
Circuit structure: HF=Half Bridge
Chip series: X=Trench FS IGBT, Low Loss
Product number: GD400HFX65C8SN

C8.1-Half Bridge
Rated voltage: 650V
Rated current: 300A
Circuit structure: HF=Half Bridge
Chip series: X=Trench FS IGBT, Low Loss
Product number: GD300HFX65C8SN

C2.0-Half Bridge
Rated voltage: 650V
Rated current: 300A
Circuit structure: HF=Half Bridge
Chip series: X=Trench FS IGBT, Low Loss
Product number: GD300HFX65C2S

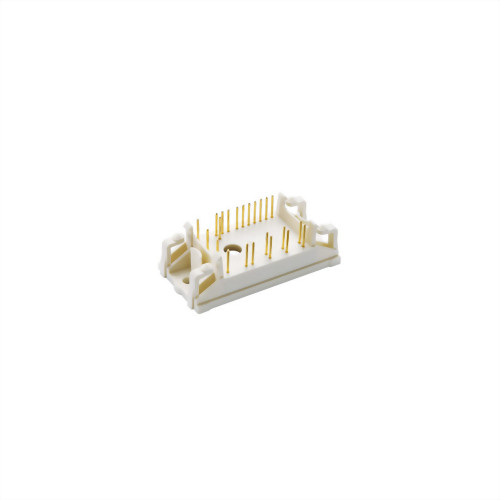

F3.0-PIM
Rated voltage: 650V
Rated current: 20A
Circuit structure: PJ=3 Phase Rectifier + Brake + 3 Phase Open Emitter Output
Chip series: X=Trench FS IGBT, Low Loss
Product number:GD20PJX65F3S

L2.2-PIM
Rated voltage: 650V
Rated current: 15A
Circuit structure: PJ=3 Phase Rectifier + Brake + 3 Phase Open Emitter Output
Chip series: X=Trench FS IGBT, Low Loss
Product number:GD15PJX65L2S

F1.1-PIM
Rated voltage: 650V
Rated current: 15A
Circuit structure: PJ=3 Phase Rectifier + Brake + 3 Phase Open Emitter Output
Chip series: X=Trench FS IGBT, Low Loss
Product number:GD15PJX65F1S

L2.2-PIM
Rated voltage: 650V
Rated current: 10A
Circuit structure: PJ=3 Phase Rectifier + Brake + 3 Phase Open Emitter Output
Chip series: X=Trench FS IGBT, Low Loss
Product number:GD10PJX65L2S

C1.0-Half Bridge
Rated voltage: 650V
Rated current: 150A
Circuit structure: HF=Half Bridge
Chip series: X=Trench FS IGBT, Low Loss
Product number: GD150HFX65C1S
