C6.3-PIM
Rated voltage: 1200V
Rated current: 50A
Circuit structure: PI=3 Phase Rectifier + Brake + 3 Phase Output
Chip series: Y=Advanced Trench FS IGBT, Low Loss
Product number: GD50PIY120C6SN

C5.3.PIM
Rated voltage: 1200V
Rated current: 50A
Circuit structure: PIM
Chip Series: Y Trench IGBT Low Power
Product number: GD50PIY120C5SN

C2.0.Half Bridge
Rated voltage: 1200V
Rated current: 300A
Circuit structure: Half Bridge
Chip series: U Ultra Fast IGBT
Product number: GD300HFU120C2S

C5.3.PIM
Rated voltage: 1200V
Rated current: 25A
Circuit structure: PIM
Chip Series: T Trench IGBT Medium Power

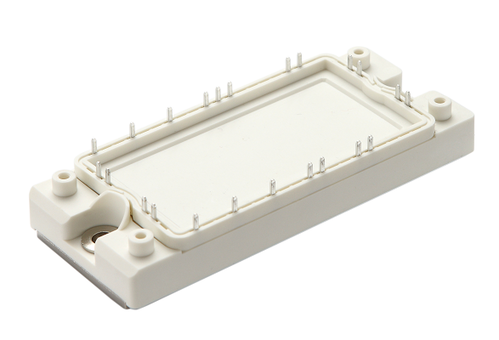

Product number:GD25PIT120C5SN

C8.1-Half Bridge
Rated voltage: 1200V
Rated current: 200A
Circuit structure: HF=Half Bridge
Chip series: Y=Advanced Trench FS IGBT, Low Loss
Product number: GD200HFY120C8SN

C2.0.Half Bridge
Rated voltage: 1200V
Rated current: 200A
Circuit structure: Half Bridge
Chip series: U Ultra Fast IGBT
Product number: GD200HFU120C2S

C2.0-Half Bridge
Rated voltage: 1200V
Rated current: 200A
Circuit structure: HF=Half Bridge
Chip series: X=Trench FS IGBT, Low Loss
Product number: GD200HFX120C2S

F3.0-PIM
Rated voltage: 1200V
Rated current: 15A
Circuit structure: PJ=3 Phase Rectifier + Brake + 3 Phase Open Emitter Output
Chip series: Y=Advanced Trench FS IGBT, Low Loss
Product number:GD15PJY120F3S

C1.0-Half Bridge
Rated voltage: 1200V
Rated current: 150A
Circuit structure: HF=Half Bridge
Chip series: Y=Advanced Trench FS IGBT, Low Loss
Product number:GD150HFY120C1S

1200V/10A PIM in one-package
Features
Low VCE(sat) Trench IGBT technology
10μs short circuit capability
VCE(sat) with positive temperature coefficient
Maximum junction temperature 175oC
Low inductance case
Fast & soft reverse recovery anti-parallel FWD
Isolated heatsink using DBC technology

C1.0-Half Bridge
Rated voltage: 1200V
Rated current: 100A
Circuit structure: HF=Half Bridge
Chip series: Y=Advanced Trench FS IGBT, Low Loss
Product number:GD100HFY120C1S
http://www.powersemi.cc/hchi_admin/upfile/GD100HFY120C1S.pdf

C6.3.PIM
Rated voltage: 1200V
Rated current: 100A
Circuit structure: PIM
Chip Series: Y Trench IGBT Low Power

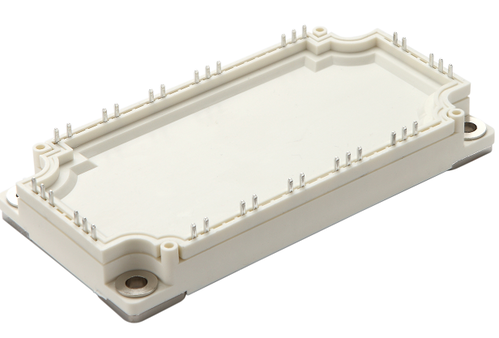

Product number: GD100PIY120C6SN
